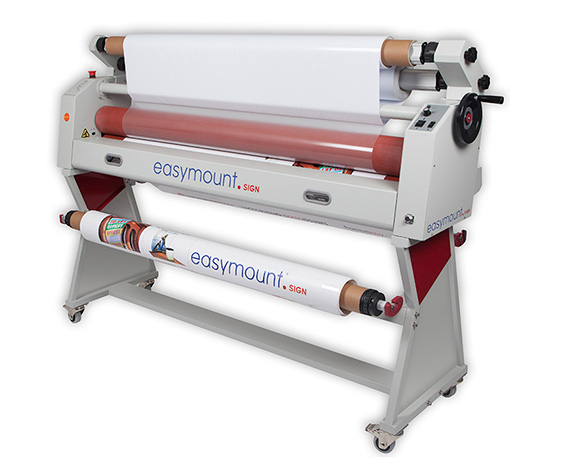

Easymount Sign 1600 Cold – EM-S1600C

The Easymount Sign includes an integral media take-up unit, making the system ideal for single banners or reel to reel laminating up to 50m / 164 feet.

Description

This Easymount Sign laminator is designed to perform and built to last, with its solid heavy duty construction.

An easy-to-use laminating system with self gripping mandrels and a flip down feed tray.

The Easymount Sign includes an integral media take-up unit, making the system ideal for single banners or reel to reel laminating up to 50m / 164 feet.

Key Features

  • Up to 5m/16ft a minute
  • 25mm / 1″ mounting thickness
  • Variable speed control
  • Integral media take-up unit
  • Self gripping mandrels
  • Magic eye safety feature
  • Single lift mechanism
  • Heavy duty construction
  • Release liner take-up
  • Large rollers
  • Handy reverse mechanism
  • Foot pedal

Great for use in

  • Sign makers
  • Photographers

Ideally suited for

  • Single banners
  • Reel to reel laminates
  • Posters, graphics and signs
  • Mounting prints to boards
  • Pop-up displays
  • Applying vinyls, tapes and adhesive films
  • Outdoor signage
<!-- [et_pb_line_break_holder] -->
<!-- [et_pb_line_break_holder] -->

Specification

Laminating Speed (m/min / feet/min) 5 / 16
Max. Width (mm / inches) 1620 / 64
Mounting Thickness (mm / inches) 25 / 1
Roller Diameter (mm / inches) 130 / 5
Warm-up Time (mins)
Hot Roller Heater System
Laminating Temperature Range (°C/°F) – / –
Control Panel
Pressure Adjustment Manual
Film Core (mm / inches) 77 / 3
Power Supply AC (v, 50Hz) 220/240
Power Supply AC (v, 60Hz) 110
Power Supply Required (Amps)
Power Consumption (W) 38
Dimensions – Width (mm / inches) 2046 / 81
Dimensions – Depth x Height (mm / inches) 550 x 1365 / 22×54
Gross Machine Weight (Kg / lbs) 156 / 344
